030
Product Description
Dimension Drawing (mm)
| Model No. | Nominal Voltage | No load | Max Efficiency | Stall | |||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Torque | Current | Output Power | Torque | Current | ||
| VDC | r/min | mA | r/min | g.cm | mA | w | g.cm | A | |
| VPE-030-03034 | 3.0 | 3400 | 22 | 1600 | 5 | 100 | 0.30 | 9.40 | 0.14 |
| VPE-0303.0- 12125 | 12.0 | 12500 | 25 | 10400 | 5 | 84 | 1.01 | 30.60 | 0.36 |
Shaft length and specifications can be customized based on application requirements.

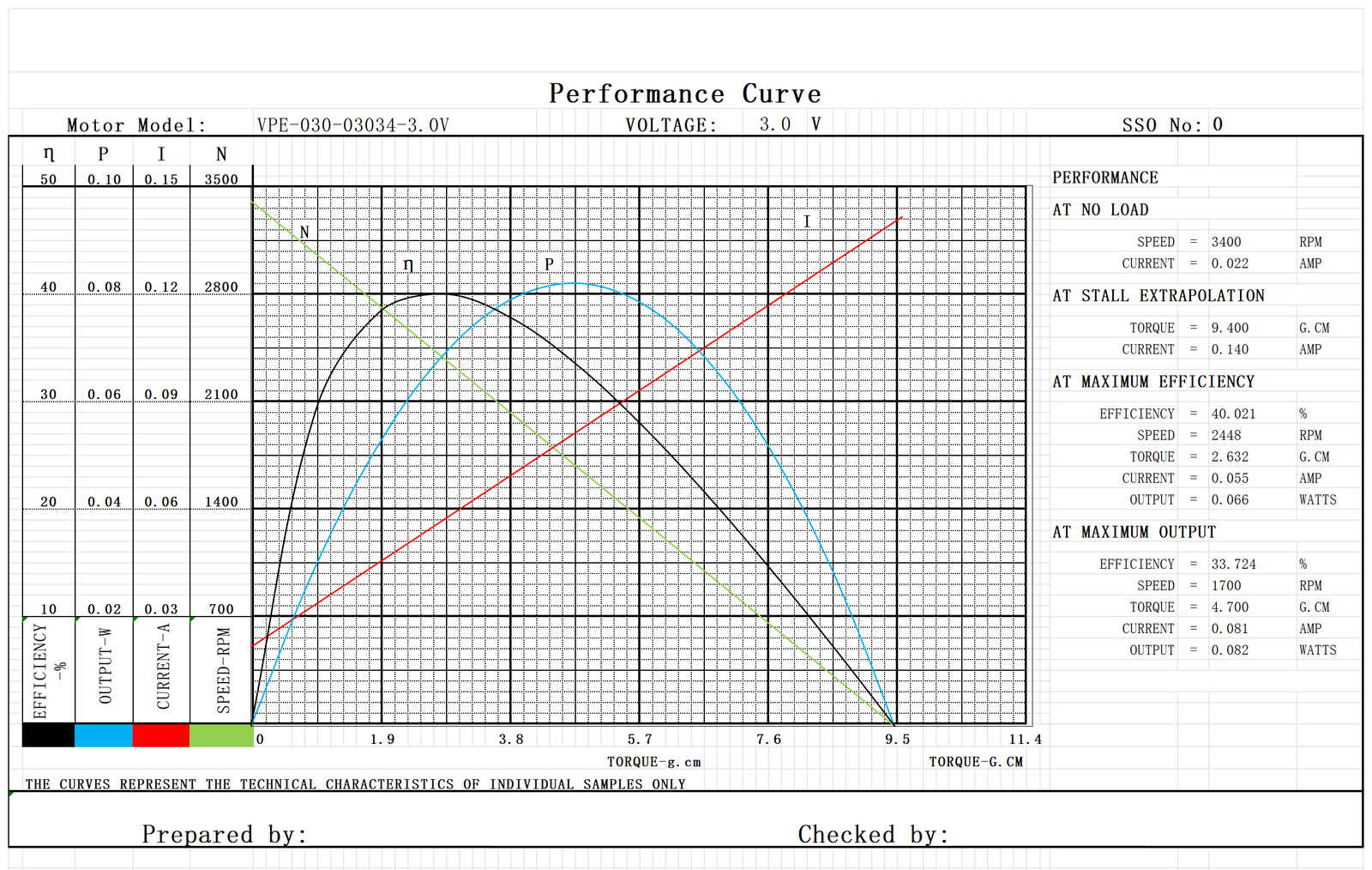

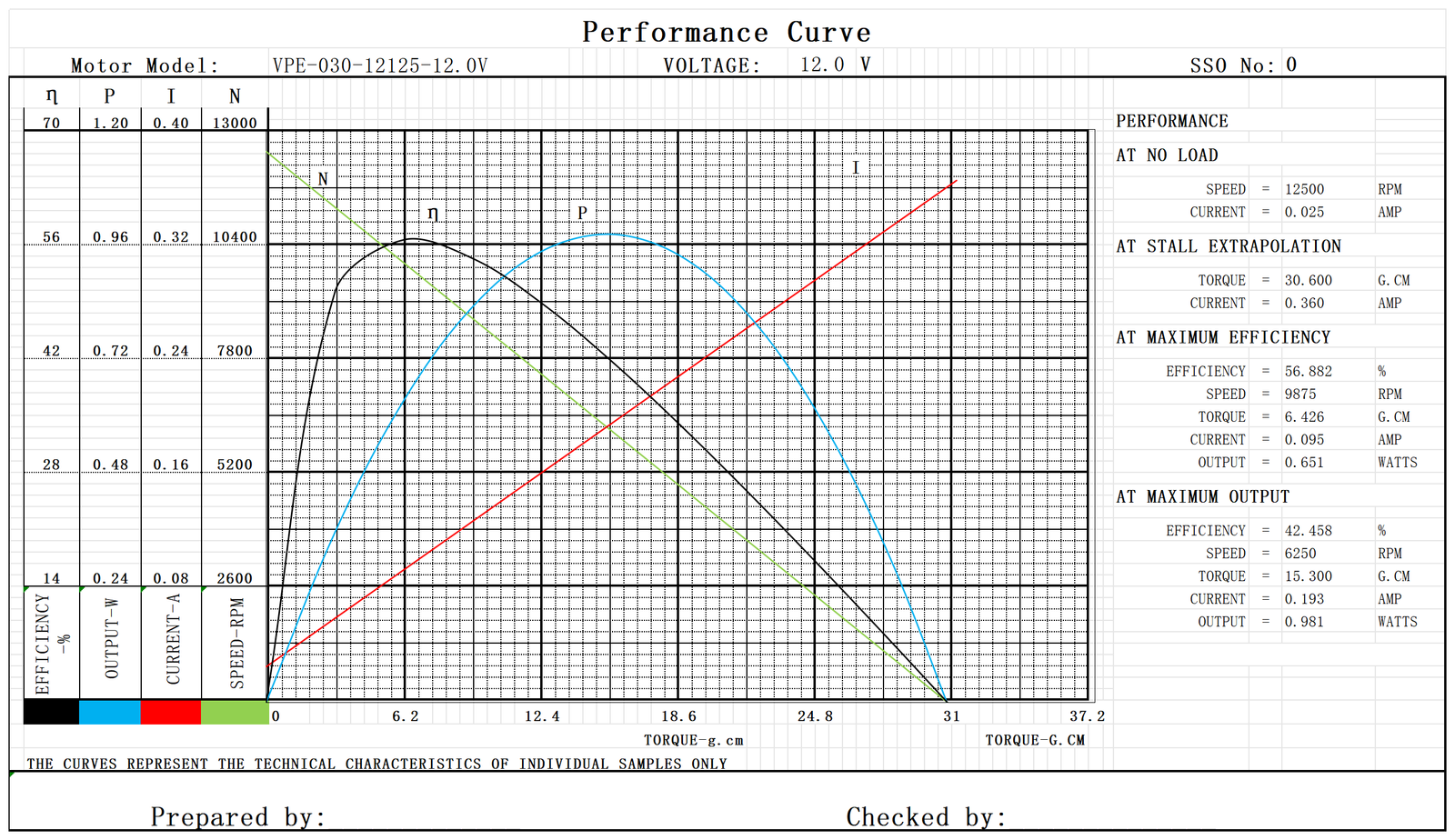

Performance Curve
